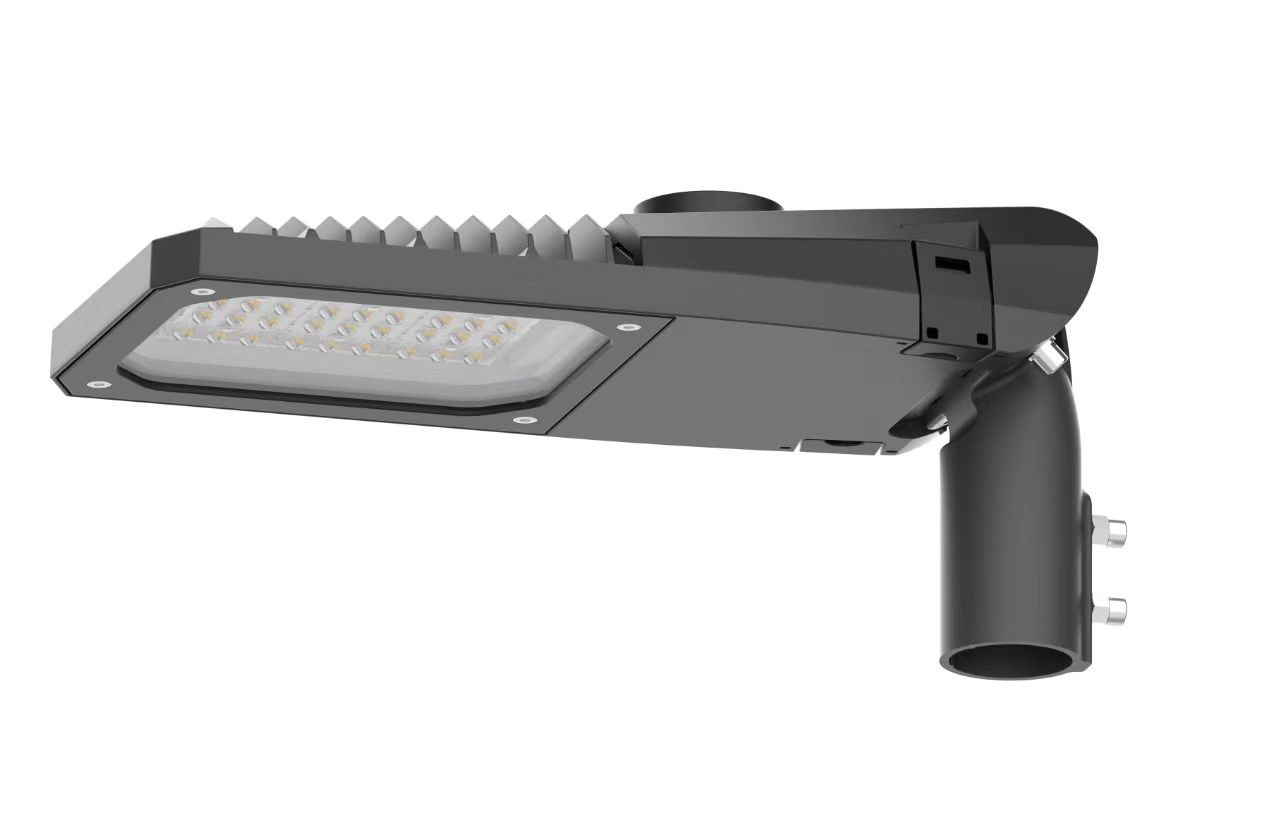

Horizontal and Vertical available adjustable angle-15°to+15° led street lighting.
The LED Street light housing manufacture from high pressure die-casting aluminum casing
| Kode model | Housing Size mm | Kekuatan Pertandingan | Lamp Post （mm) | Berat （Kg) | Aksesori |
| EK-LD13A | 492*183*97 | 30-50W | 60 | 2.4kg | Aluminum body tempered glass, Waterproof Rubber Ring，304 s/s screws, |
| EK-LD13B | 541*200*113 | 60-80W | 60 | 2.8kg | |
| EK-LD13C | 602*243*121 | 90-120W | 60 | 3.5kg | |
| EK-LD13D | 652*263*121 | 120-150W | 60 | 4.0kg | |
| EK-LD13E | 722*314*121 | 150-200W | 60 | 5.5kg | |
| EK-LD13F | 823*314*121 | 240-300W | 60 | 6.1kg | |
| Legend: Std = IP66 IK08 | |||||
| Housing Material ：Die-cast Aluminum + Armored Glass | |||||
| Suhu kerja -35 ℃ ~ 50 ℃ 20% ~ 90% HR | |||||
Fitur Produk
- Tubuh aluminium terbuat dari aluminium Die-casting ADC12, permukaannya dirawat dengan lukisan semprot untuk Mencegah Korosi dan Persistensi Warna.
- Large area heatsinks fin design for fast theory in favor of the connection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Kotak pemasok daya untuk menjaga agar lampu tetap lengkap dan menyatu.
- Desain ventilasi untuk pencegahan debu & mencegah genangan air untuk mencapai umur panjang yang ringan.
high-performance street lighting available in three sizes.
The LED Street lighting is manufactured from high pressure die-casting aluminum.
Led street light housing, Aluminum body street light
ShenZhen EKI Lighting Industrial Co.,Ltd. adalah produsen Aluminium Die-Casting LED Light Housing Dengan berbagai desain dan teknologi yang kami kembangkan sendiri.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED High bay Heatsink, LED Downlight Empty Casting and so on.
Fitur perumahan lampu jalan LED:
- Daya tahan tinggi
- Kekuatan tinggi
- Tersedia desain terbaru
