5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Nama Produk: Bodi Lampu Jalan
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks Tahan Air: IP66 IP67
Indeks Tahan Gempa : IK08 IK09
Suhu Kerja (℃): -20-60
Warna Permukaan: Abu-abu Tua, Abu-abu Muda, Hitam, Disesuaikan dll
Contain Accessories : Complete finished street lights
Fitur Produk
- Aluminium body terbuat dari ADC12 aluminium Die-casting, permukaannya dirawat dengan Spray-painting untuk Mencegah Korosi dan Ketahanan Warna.
- Desain sirip heatsink area yang luas untuk teori cepat yang mendukung konveksi antara udara dingin dan panas, untuk menjaga pembuangan panas lampu yang baik dan meningkatkan cahaya seumur hidup.
- Kotak pemasok listrik untuk menjaga agar lampu tetap lengkap dan menyatu.
- Desain ventilasi untuk pencegahan debu & mencegah genangan air untuk mencapai umur panjang yang ringan.

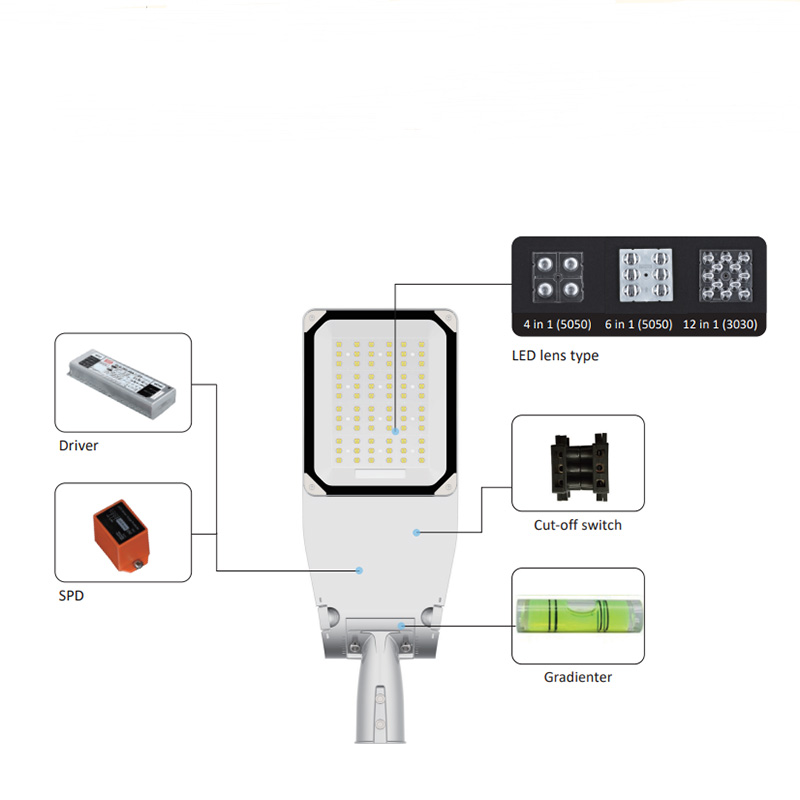

Product Details

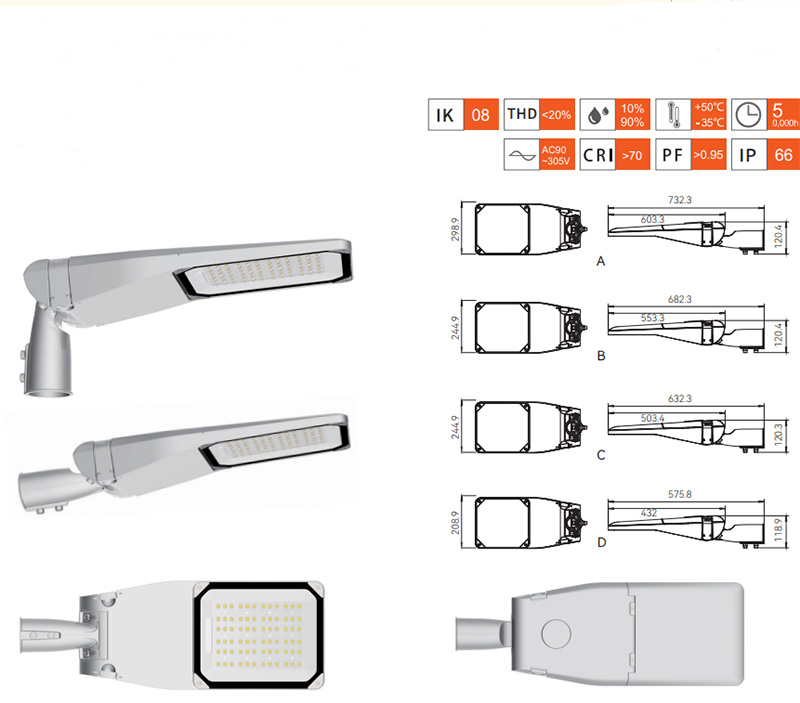

Product Size Chart
Spesifikasi dan Dimensi
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| Kelas IP | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Bahan | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co.,Ltd. adalah produsen Aluminium Die-Casting LED Light Housing Dengan berbagai desain dan teknologi yang kami kembangkan sendiri.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
